Utilizing Blocks: Do Not Explode

In the fast-paced world of design, every second counts. To thrive in this competitive profession, interior designers, drafters, and architects are constantly seeking ways to boost their productivity and streamline their workflows. Let’s immerse ourselves into the transformative world of AutoCAD blocks and how their features will change the way you approach your designs. Blocks are my secret weapon and I am so excited to share their power with you.

Blocks are my secret weapon and I am so excited to share their power with you.

But first, what is a block? AutoCAD blocks are pre-defined objects within the AutoCAD software that simplify the design process. The types of blocks that we most commonly use are furniture, plumbing, lighting, doors, windows, symbols, accessories, and floor plans. We create these objects by utilizing the manufacturer's spec sheet of the item to ensure complete accuracy.

Once we are satisfied with the drawing, we use the block command to convert it into a block with our preferred name; the object is now unified and moves as a single entity. For more info on how to complete this step head to the training module about blocks featured in our Advanced AutoCAD Course (COMING SOON)

Floor plan blocks are a designer's most reliable sidekick! One of their key benefits? The ability to make edits in one place and see those changes propagate across all iterations. Imagine this: I create all my floor plans as blocks and use the x-clip command rather than copying unattached lines when creating an enlarged view of a single room. Throughout the design process, floor plans often undergo modifications and revisions, but with blocks, it's a seamless editing process. Any adjustment to a block automatically updates wherever that block is used, ensuring a consistent design with no missed edits. It's all about making changes just once and having them apply everywhere!

I can effortlessly move and test out new configurations, giving my creativity room to shine.

And let's not forget the convenience when it comes to furniture layouts. By nesting the furniture plan within the floor plan block we keep those walls firmly in place, allowing me to experiment freely with different furniture arrangements. I can effortlessly move and test out new configurations, giving my creativity room to shine.

Now, let's dive into the screenshot below, you'll spot that the faded sections aren't up for editing; they're simply there for reference. This feature ensures no relationship is forgotten; whether it’s lighting placement designed around the furniture or flooring transitions between rooms, you will see it all in this protected state.

In this plan you can see the fixture locations as well as switch paths have been highlighted for editing while the remainder of the nested blocks are dimmed and available for reference only.

In the world of design, just when you think you're done, life throws you a curveball. Whether it's a sudden "project revival" message from a client or a surprise need for changes due to out of stock selections, we've got you covered. Take Brandy from Everyday Lovely, for example – she's got us on speed dial! “Soooooo remember how we were never touching this project ever again.... ahhahahaahahhaahhaahahhaahah would you ladies have time to do a rework on it?" In one memorable project, we had to wave our magic CAD wand and redraw almost every specification due to new plumbing and lighting selections. Our trusty block x-clips were like superheroes, swooping in to save the day when revisions occurred across more than 60 pages.

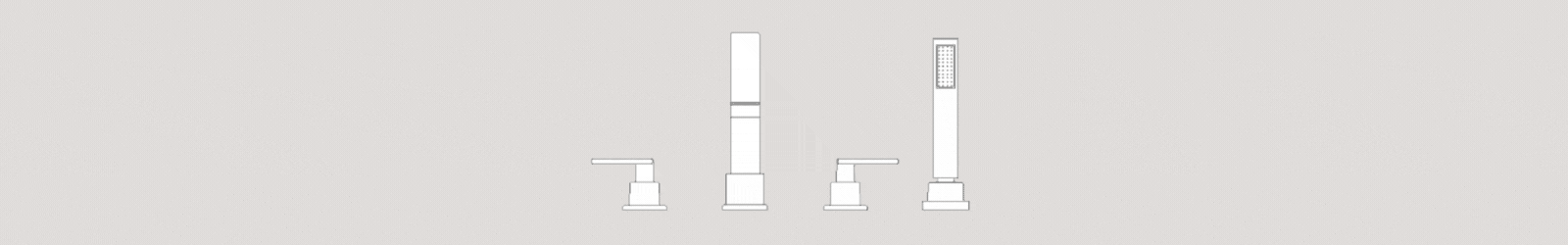

Utilizing blocks for intricate, unchanging details is a smart strategy in CAD design. When you create a block for elements like faucets, tile patterns, or light fixtures, you're essentially safeguarding them from unintentional modifications. This protection comes in handy when you need to make adjustments to the surrounding features without disrupting these specific details.

Should you decide to modify the block itself, for instance, adjusting the hanging height of a chandelier, you can smoothly achieve this within the block editor. This "edit in place" option allows you to make quick targeted changes while keeping the context of the surrounding elements intact.

We harness the power of dynamic blocks to elevate our CAD game

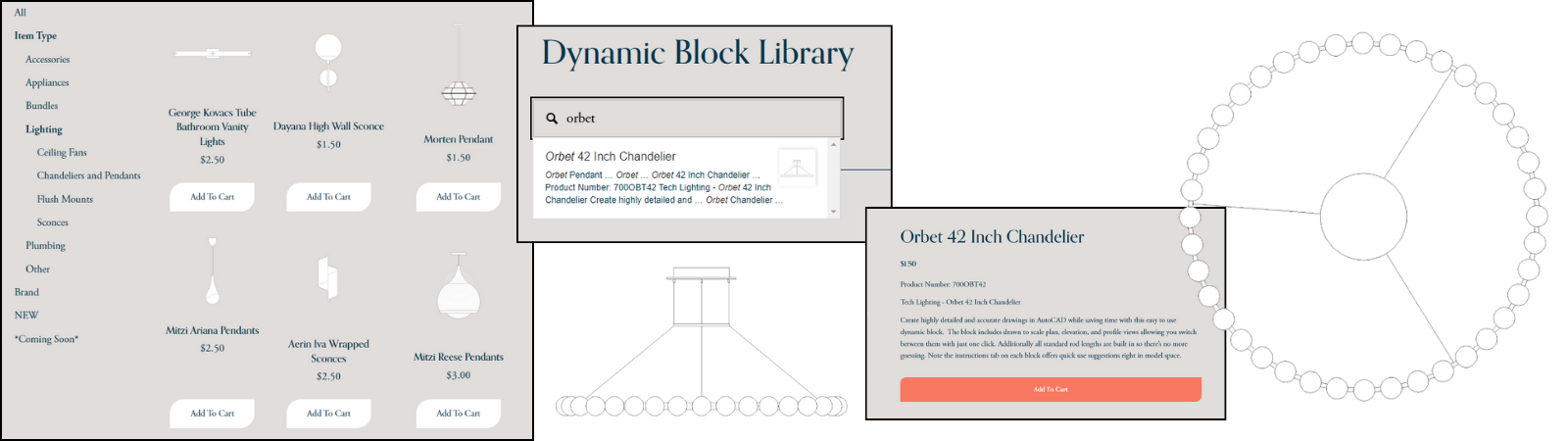

Additionally, we harness the power of dynamic blocks to elevate our CAD game. They offer efficient editing functions, such as specifying rod hanging parameters, taking our design process to a higher level of efficiency. Stay tuned for our upcoming blog post, where we'll delve deeper into the remarkable functionality of dynamic blocks and where you can grab some for yourself.

Utilizing AutoCAD blocks offers a range of benefits including consistency, time efficiency, ease of editing, specification accuracy, and enhanced collaboration. Incorporating AutoCAD blocks into the design process is a worthwhile investment that yields significant advantages in the world of interior design and architecture. Welcome to the new era of efficiency!

Be sure to make use of our training guides on blocks and XClips to elevate your expertise!
